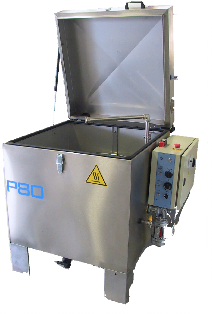

The low-temperature automatic parts cleaners!
On the P Series parts cleaners, parts are automatically cleaned in a rotating basket by upper, lower and side jets. Temperatures can be set up to 60°C.
Model features:
- Electromechanical control panel
- Reinforced basked of electrowelded net with an external edge of galvanised steel
- Minimum tank level control
- Electric stainless steel pump
- Stainless steel filter on pump suction
- Safety limit switch on cover opening
- Fluid heating with electrical resistor of Incoloy steel
- Stainless steel laser-drilled washing piping (for more pressure but less maintenance)
- Flexible suction and delivery pump pipes (for easy maintenance)
Service intervals are dependent on usage.
|
|
P60 |
P80 |
P100 |
P120 |
|
Closed machine dimensions (H x W x D) (mm) |
1000 x 920 x 780 |
1100 x 1120 x 1000 |
1250 x 1460 x 1590 |
1450 x 1660 x 1590 |
|
Open machine dimensions (H x W x D) (mm) |
1530 x 920 x 860 |
1850 x 1120 x 1050 |
1910 x 1460 x 1750 |
2110 x 1660 x 2060 |
|
Washing capacity (H x Ø) (cm) |
380 x 580 |
430 x 780 |
540 x 970 |
700 x 1170 |
|
Basket load capacity (kg) |
100 |
100 |
200 |
300 |
|
Washing tank capacity (litres) |
60 |
130 |
210 |
270 |
|
Washing pump (kW / bar / lt min |
0.55 / 2.0 / 80 |
0.55 / 2.0 / 80 |
1.5 / 2.5 / 200 |
1.5 / 2.5 / 200 |
|
Washing heating elements (kW) |
4 |
4 |
6 |
8 |
|
Mechanical rotation (kW) |
0.09 |
0.09 |
0.09 |
0.09 |
|
Electrical supply (PH+T) |
3 |
3 |
3 |
3 |
